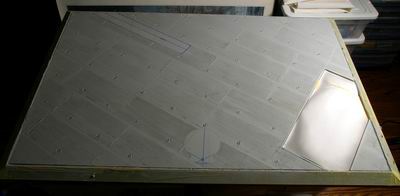

塗装の開始。まずはサーフェサーを吹きかける。マスキングを忘れずに! Spray gray primer. Don't forget to mask the frame. |
|

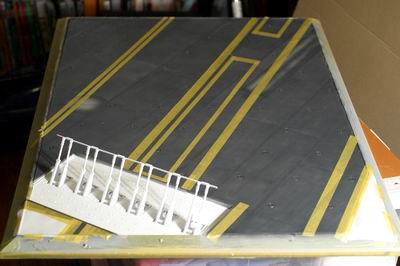

ダークグレーを全体にスプレイ。色の配合は忘れたが、たしかタミヤのXF-24に似せた色をMr.カラーを調合して作ったと思う。崩れやすいポリパテの上にアクリル系では、その後のエナメルウォッシングに耐えられないと思う。 写真は、白線用のマスキングテープを貼ったところ。 Spray dark gray first. I forgot the ratio, but I mixed several Mr. Color paints to resemble the color of Tamiya XF-24. I believe using acrylics on the polyester putty is not good for wash. This photo shows masking for the white lines after the gray sprayed. |
|

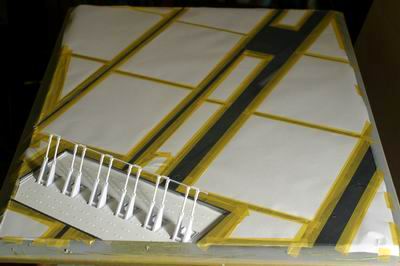

間にマスキングテープはもったいないので、紙で代用。 To save masking tape, I put the paper in between. |
|

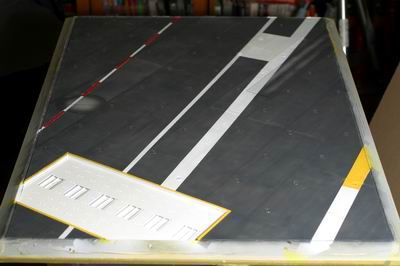

ウエザリング前 Before weathering. |
|

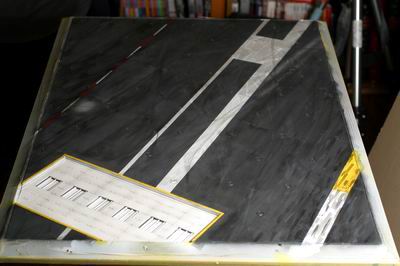

ウエザリング後 After weathering |
|
要領はエナメルウォッシングと同じ。エナメル黒を10対1程度に薄め、大筆で塗りたくる。その後、ガーゼにエナメルシンナーを染み込ませふき取る。ふき取り方で、各種の模様を描いていく。 It's same as the wash technique. Thin Tamiya enamel black to 1:10. Wash the deck with big brush, and then rub away excess enamel with gauze soaked in the enamel thinner. Draw a pattern with that gauze. |
|

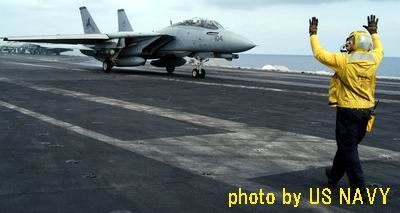

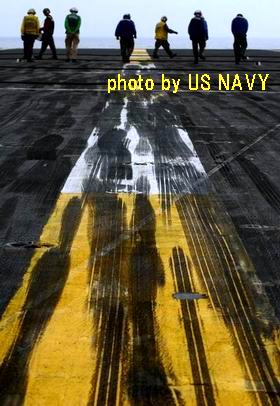

実物は思いっきり汚い。 The real one is very dirty like this. |
|

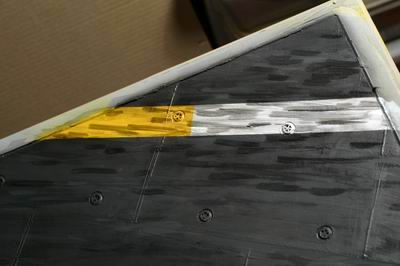

飛行機が着艦するためのセンターラインは、タイヤ跡が凄い。これだけを見るとやり過ぎかと思われるが、下の実物と比べて欲しい。 このタイヤ跡は、綿棒を3本束ね、シンナーを付け、こすっていくとこのような跡が書ける。 This is the center line for the landing. You might feel it's too dirty, but please compare with the following photo. I drew this pattern with tied 3 cotton swabs. |
|

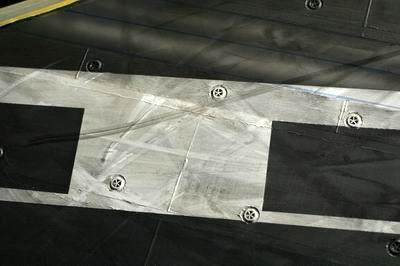

センターライン。 Center line. |
|

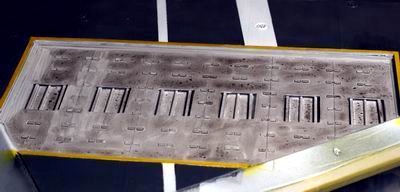

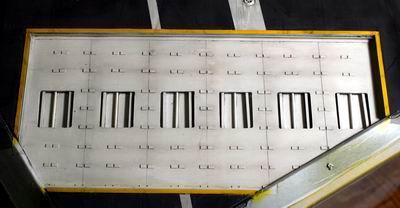

JDB収容パネルもエナメルウォッシング Wash JDB bay. |
|
うまくふき取れば、このようにいい感じとなる。 Remove excess enamel with cotton swab. It's very natural look, isn't it! |
