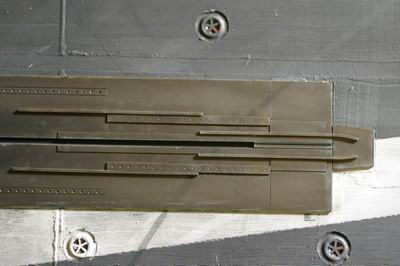

カタパルトの製作。

Building the catapult

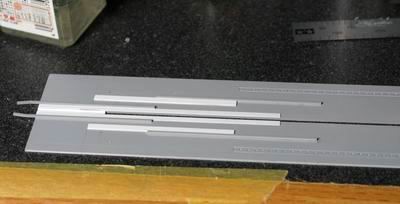

エバーグリーンのプラ板とプラ角材の組み合わせ。

Put Evergreen's plain board and strips together.
ラインスクライバーでラインを入れ、ピンバイスで穴の模様を入れている。塗装はプライマ吹き付け後、アルクラッドのスチールとカッパーを混ぜたものをスプレーした。最後にエナメル黒によるウォッシング、グレーによるドライブラシを行った。

Scribe lines and make holes with pin vise. For painting, after spraying primer, spray mixed Alclad Steel and Copper. Wash with enamel black and then dry-brush with gray.

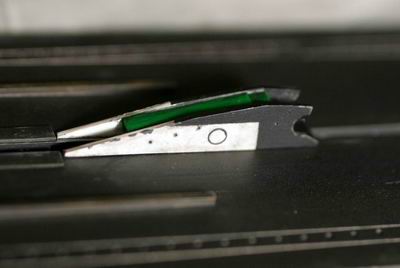

カタパルトシャトルの製作

Catapult shuttle
エバーグリーンでスクラッチビルト。

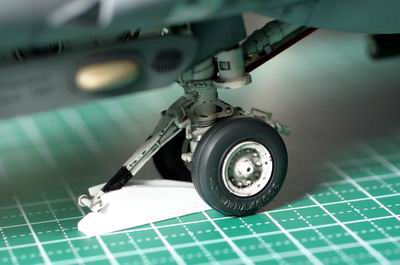

上の拘束具は下の写真のように、シャトルと合わせてみて、車軸に接着する。

Scratch and build catapult shuttle with Evergreen's plastics.
Cut the hook off from the struts and paint it. After placing the shuttle under the struts, position the hook and glue it to the struts.
車輪下に入るようにシャトルの高さには注意する。

Adjust the height of the shuttle to fit under the struts.

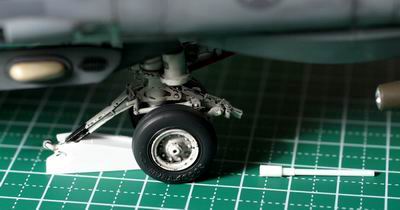

一定の力が加わるまで機体をつなぎとめるホールドバーは、取り外しができるように、針金を先端に取り付け、車軸に差し込むようにした。

Adjust the length of the Hold bar which holds the aircraft until the force pulls it away. I did not glue it to the struts. I made holes on both side, then stuck metal wire to hold.
中が緑のものとそうでないものもあるようだ。

It seems there are 2 versions which are painted either green or red.

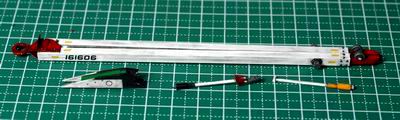

黒がF-14用、黄色がF-18用のホールドバー。

Black Hold bar if for F-14
Yellow Hold bar is for F-18
このカタパルト2点セットは取り外し可能。

The shuttle and Hold bar are replaceable.

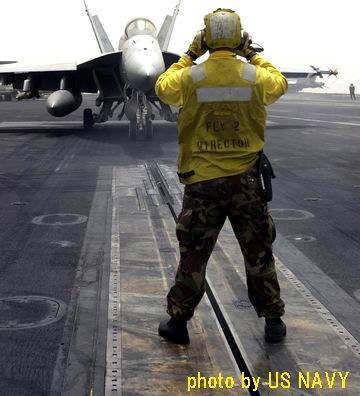

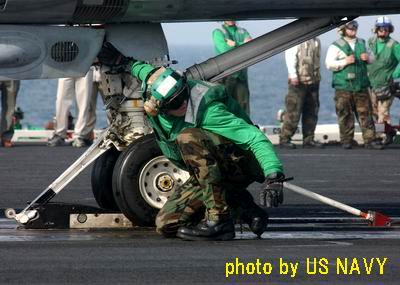

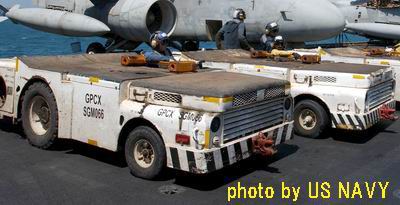

実物

Real stuff
トレーラーの製作

Building Tractor

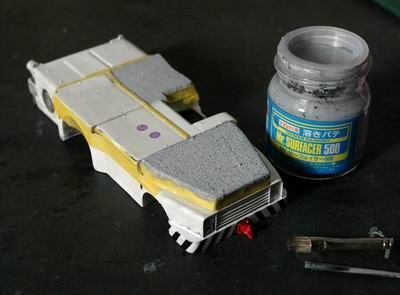

PWMP社製のレジンキットである。とても精巧にできていて、まったく手を入れる必要はない。離型剤を取り除くため、中性洗剤で洗った後、レジンプライマ-をスプレイ、塗装はMr.カラーで行った。上部の滑り止めは、タミヤのパテをMr.カラーのシンナーで溶いたものを、筆でたたくように塗っていく。

PWMP's resin kit is a state of the art product. I did not modify anything except top skin.
Remove oil by washing with dish soap. Spray resin primer. Spray Mr. Color white. Paint black and red with acrylics. For top coat, Paint thinned Tamiya's regular putty as tapping with brush.

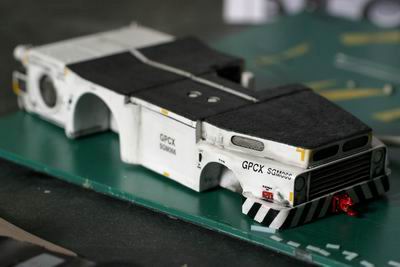

セットに入っているデカールもうまくなじみ、良好である。最後にエナメルのジャーマングレイでチッピングを行った。

The decals are also very good quality.
Paint German Gray for chipping. Finally spray flat overcoat.
