ちょっと順番が逆になってしまったが、少し前にグレートモデル www.greatmodels.com
に注文していたCECのACES2シートとF-15E update、エデュアルドのF-15Eが届た。 Although shown in the previous session, Here are new stuff arrived from GreatModels.com, which are Eduard's F-15E, CEC's F-15E update and ACES II ejection seat. |
|

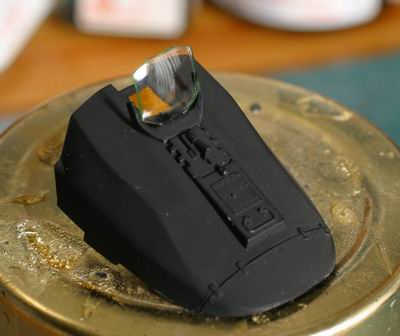

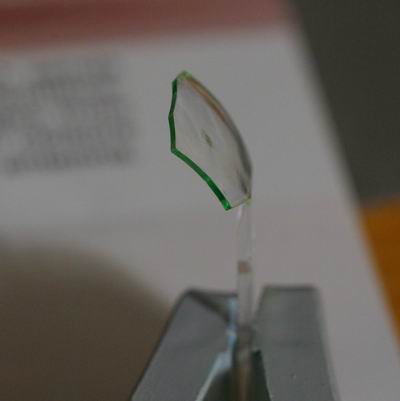

塗装指示はHUD全体をクリアーグリーンであるが、私は縁だけグリーンがお気に入りである。 I prefer painting just the sides of HUD green instead of whole screen. |
|
いかがでしょうか How's this? |
|

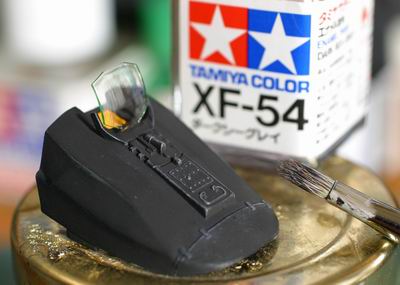

エナメルXF-54でドライブラッシングして、雰囲気を出す。ドライブラッシングは控えめがポイント。ドライブラシ専用筆にエナメルをつけ、ティッシュで拭いて、”しばらく”待ってこすりつけるのがミソ。 Dry-brush with XF-54 enamel. The trick is to stop before you feel it's enough. Use dedicated brush. Dip it into paint, then rub off exess with tissue paper and then wait a moment before brushing. |
|

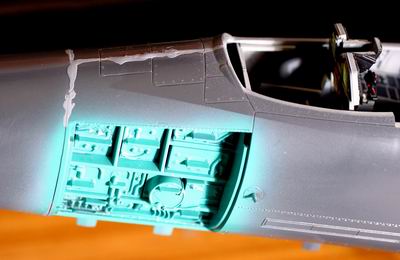

機首の塗装を始める前に計器パネルを仕上げておく。指定の色でエアーブラシ。 Before painting nose part, complete inside instrument panel. Spray instructed color in manual. |
|

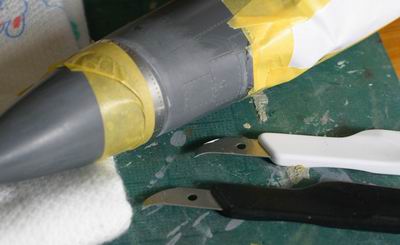

言い忘れていたが、レーダーコーンが開いている状態はディスプレイ上好きでないので、接着してしまった。境目をきれいに処理するため、パテで埋めラインと段差を消し、その直ぐ脇に新しいパネルラインを彫る。曲面用筋彫り定規にマスキングテープを貼り付ける。これをコーンに貼り付け、筋彫りを行う。て | |
I forgot to mention it that I did not like the appearance of the open nose
cone for display, so I glued it closed. In order to get a clean finish,
put putty into the gap and fill lines and steps completely. Then make a
new line just a little bit forward from original line. To do so, attach
Hasegawa's curved scribing template with mask tape, then re-scribe the
line along it. |
|

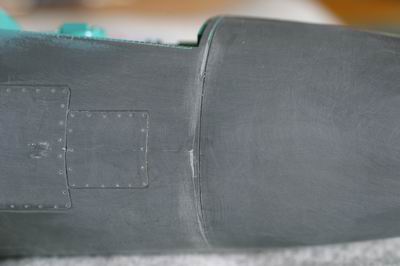

新しいライン This is the new line.. |
|

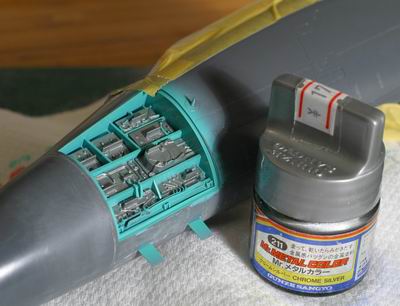

機器パネルの塗装に戻って、 まずメタルカラーを手塗りして、綿棒で磨く。 Back to instrument panel. Paint Mr. Metal Color, then buff up. |
|

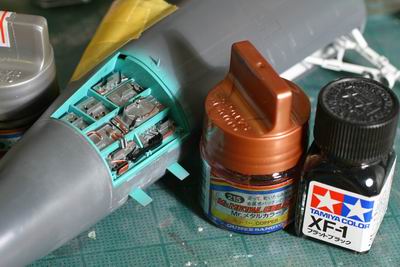

ワイヤーをMr.メタルカラーのカッパーとエナメルのXF-1で色つけ Use Mr. Metal Color Copper and enamel XF-1 for wiring. |
|

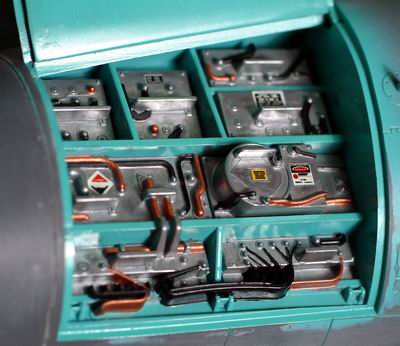

ハセガワの1/48ウエポンセットのデカールから適当なものを拝借して、この通り。 Use some decals from Hasegawa's 1/48 weapon set. |
|

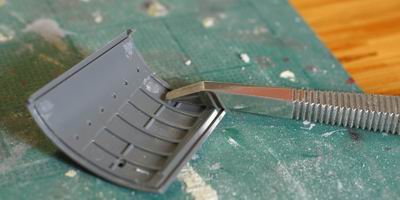

パネル裏のピン跡は消す。このように細い隙間のピン消しはペーパーでは大変。まずノミで削り取ると楽。 It's hard to remove pin's mark in such narrow spot. A scraper like this works well. |
|

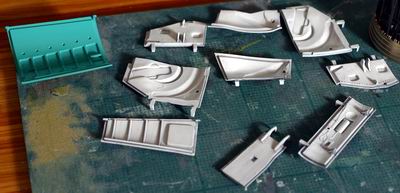

脚収納パネル裏のピン跡も同じように消して、下地処理後、塗装して完成。 Remove all pin marks on the inside panel of landing gear struts. Then apply primer and spray paint. |
|

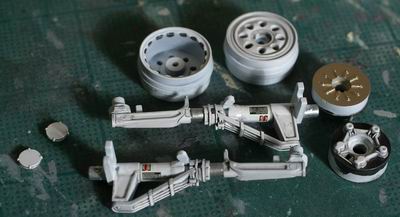

メインギア Main gear struts |
|

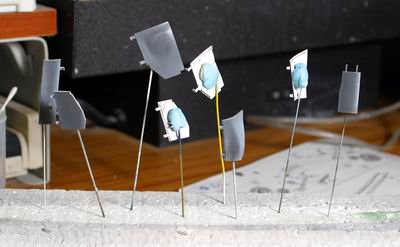

収納パネルの表側をエアースプレイする。粘土と針金で固定。 Use reusable adhesive "fun tack" and wire for spraying. |
