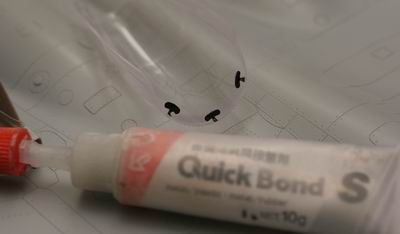

バックミラーは接着面をカッターで少し荒らして、金属用瞬着で接着する。裏面はエナメル黒を筆塗り。 Scratch the surface with cutter knife before glue the metal parts to the clear parts. I used instant glue "Quick Bond" for metal. |
|
キャノピの開閉ギミックは、いろいろ悩んだ末、閉じた時のギャップが大きくて醜いこと、開け閉めして遊ぶ予定はないこと、風防が大きくて内部もよく見える、という理由で閉固定に決めた。 後部目隠しはキャノピ側へ接着せずに、胴体側に固定して、キャノピの反りを矯正する支えとして利用する。 I really considered whether if I leave opening gimmick of canopy or not. I decided it closed position because 1. the gap is too big at closing position, 2. I don't play with the model, 3. glass is enough clean and wide to see inside of the cockpit. I didn't glue canopy cover to the canopy side, instead of that, I glued it to the cockpit side in order to use it as a supporter of the canopy. |
|

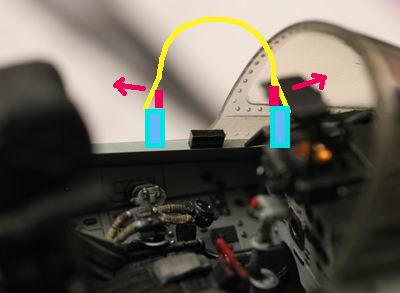

キャノピは内向きに強く反りがあるので、この部分にプラ角材を接着して内側から補正する。 The bottom of the canopy is shrink to inside and need to correct that warpage. In order to align the side of the canopy to the body, I put a rectangle plastics as shown in this photo. This supporter push the canopy outside. |
|

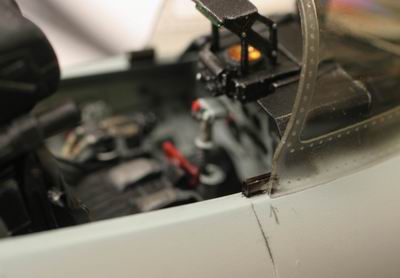

両サイドに設置。色は黒にしておけば目立たない。 Put it on the other side. Paint them in black for invisible. |
|

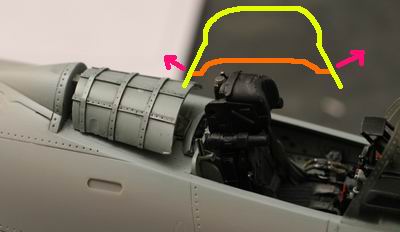

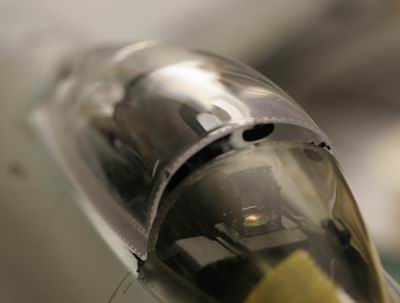

上から置いただけでは、このように反りがあってはまらない。 Canopy shrinks like this. |
|
火であぶって広げる勇気はない。 I don't want it correct with risky heat up methods. |
|

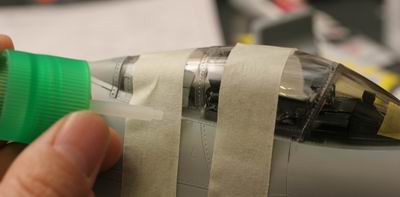

後部目隠しと全部の角材が強制的に裾を広げてコックピット外壁とピタリとはまったところで、サラサラ接着剤を流し込む。 The canopy cover and two rectangle supporters push canopy outside and fit it completely. Put thin cement into the gap for glueing. |
|
前部のすきま There is a gap here. |
|

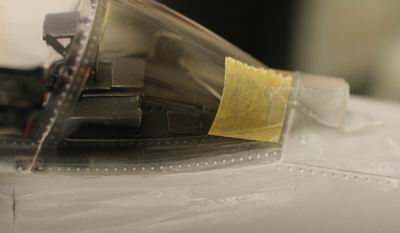

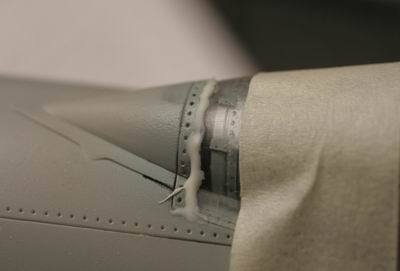

溶きパテをのせ Put putty |
|

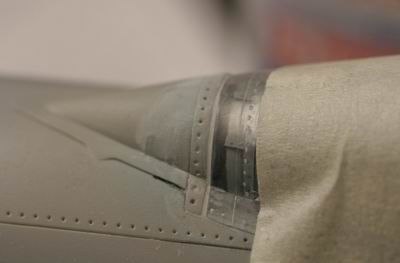

5分後にアルコールでふき取る Rub with the cotton swab dipped in the 91% isopropyl alcohol. |
|

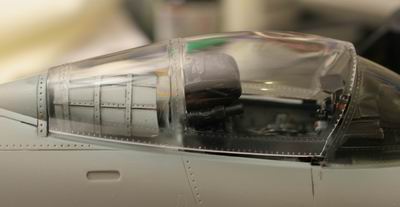

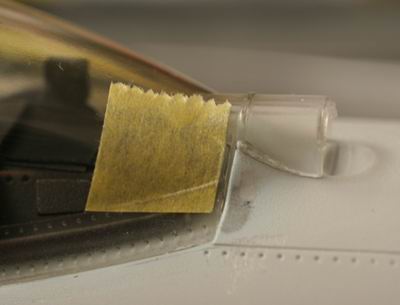

後部の大ギャップ Big gap here. |
|

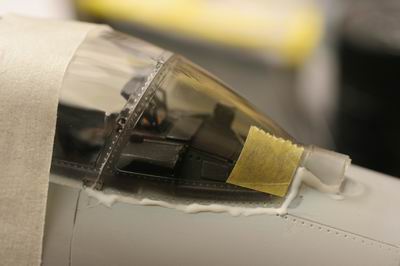

溶きパテでふさぎ Put putty into the gap. |
|

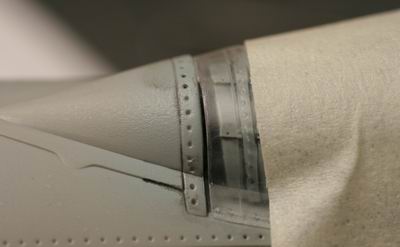

アルコールでふき取る Rub with the 91% isopropyl alcohol again. |
