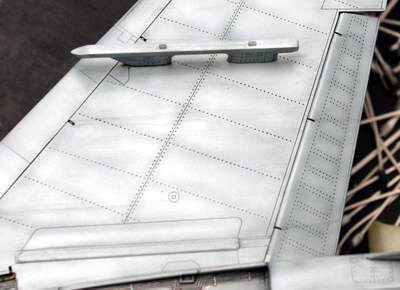

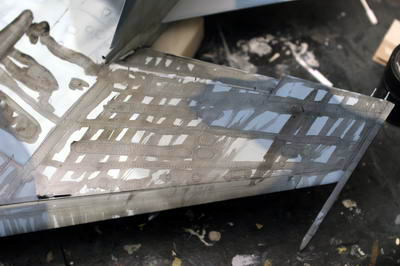

ウオッシング完了した状態にオイル汚れを入れる。 After the wash, draw oil stain marks by hand brash with enamel black paint. |
|

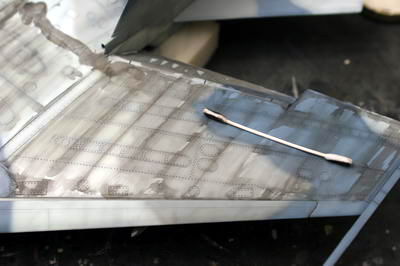

エナメルシンナーを浸した綿棒で軽く擦り取る。 Rub gently with a cotton swab dipped with enamel thinner. |
|

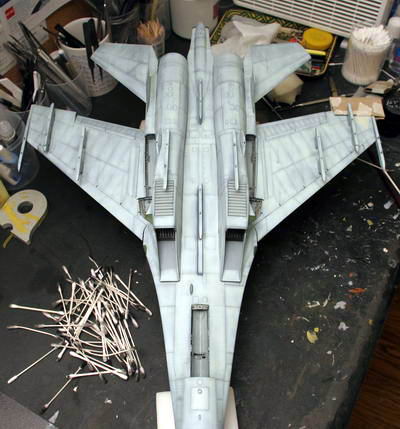

裏面だけでこれだけの綿棒を使った。エナメルシンナー中毒にならないようにガスマスクは必須ですよ。 I used this much of cotton swabs for just bottom side. Don't forget to wear a respirator to protect from harm enamel thinner gas. |
|
j上面の開始。まずはこの位のエリアから。 Let's start with top side. I worked this area first. |
|

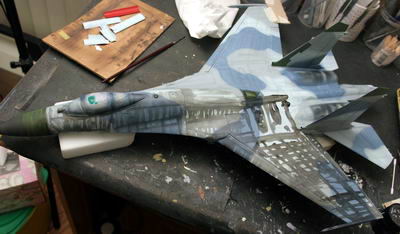

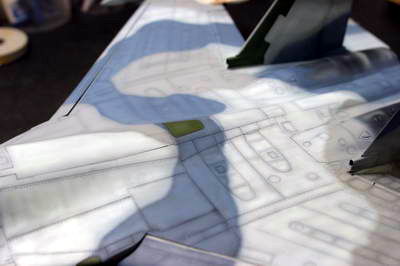

パネルラインとオイル汚れを書き込み、 Draw lines along with the panel lines. Also draw rail or oil stains, too. |
|
綿棒で擦り取る。最初はこんな感じで。空気の流れる方向に拭き取っていこう。 At first round, rub and remove excess enamel with cotton swab. Move a cotton swab to the direction of airflow. |
|

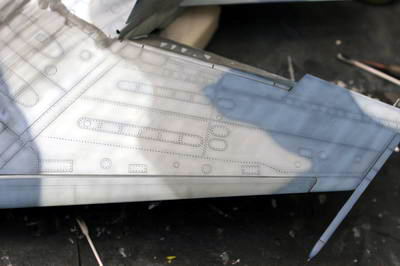

2回目の拭き取り後。 At second round. |
|

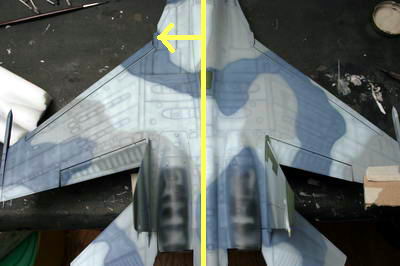

左側半分が終了。 Left half side has done. |
|
手前とその向こう側の違いがよくわかる。 You can see the difference of wash with the left(front in the photo) and right half of fuselage. |
|

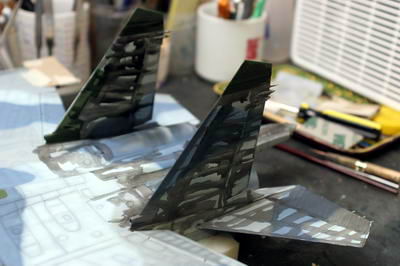

垂直尾翼左側とスタビライザー。 Left half of the horizontal wing.and left stabilizer. |
|

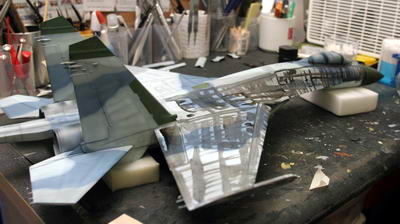

右側の開始。 Right side of the fuselage. |
|
垂直尾翼右半分と右のスタビライザー。 Right half of the horizontal wing and right stabilizer.. |
|

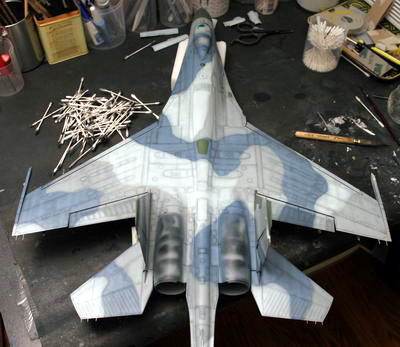

上面はこれだけの綿棒を消費。 This many of cotton swabs were consumed for the top side wash. |
|

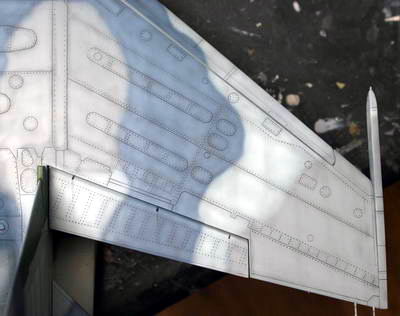

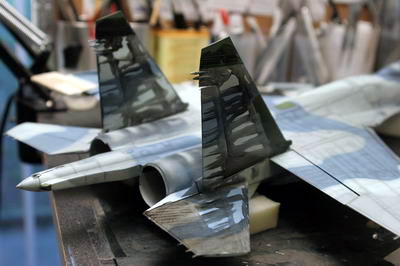

クロースアップ。 This is the result. |
